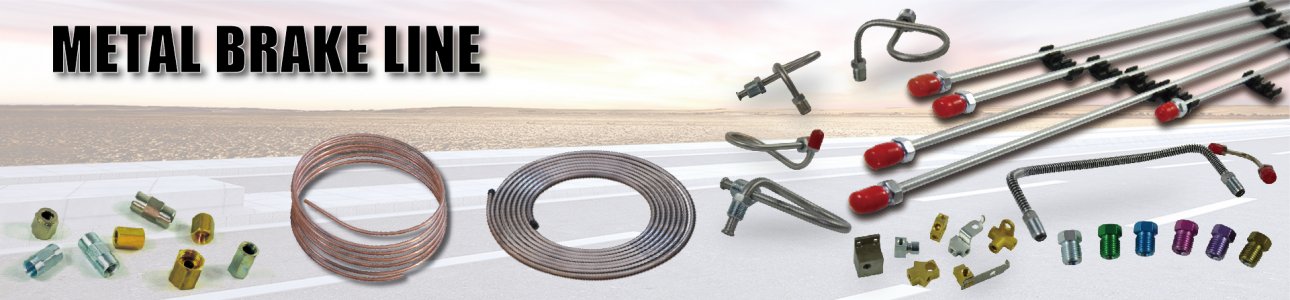

METAL BRAKE LINE

Standard

•    SAE J527

•    ASTM A254

•    TSE5130

•    DIN74234


 Material

•    Steel tube ( bundy tube )

•    Stainless Steel tube ( SS304 )

•    Copper tube

•    Cunifer tube ( C70600 Cu90-Ni10 ) Cupro-Nickel tube


Plating

•    Copper-brazed

•    Chrome3+ Zinc silver white

•    Gold

•    Olive Green

•    PVF

•    PA12


Sizes

Available for any lengths required based on customers' specific demands for all types of cars

Line Diameter

End Tube Nut Size

Thread

Tube Nut Flare

3/16”

10mm-1.0 x 10mm-1.0

Standard

Inverted

3/16”

10mm-1.0 x 10mm-1.0

Metric

Inverted

3/16”

10mm-1.0 x 10mm-1.0

Metric

Bubble

3/16”

10-1.0mm x 10-1.0 mm

Metric

Inverted

3/16”

10mm-1.0 x 10mm-1.0

Metric

Standard

3/16”

3/8-24 x 3/8-24

Metric

Bubble

3/16”

3/8 -24 x 3/8 -24 LNG

Standard

Inverted

3/16”

10mm-1.0 x 10mm-1.0

Standard

Inverted

1/4''

7/16 -24 x 7/16 -24 LNG

Standard

Inverted

1/4''

7/16 -24 x 7/16 -24 LNG

Standard

Inverted

1/4”

3/8-24 x 3/8-24

Metric

Bubble

5/16”

1/2 -20 x 1/2 -20

Standard

Inverted

3/8”

5/8 -18 x 5/8 -18

Standard

Inverted

6mm

12mm-1.0 x 12mm-1.0

Metric

Bubble



Excellent Features

 ● Easy for installation

 ● Very high weldability

 ● Good impingement attack resistance

 ● Easier to bend and form without Kinking

 ● Various lengths and sizes to meet customers' specific demands

 ● Zinc-coated finished tube with excellent rust and corrosion resistance

 ● Meet the specifications of SAE J527, ASTM A254, TSE 5130, DIN 74234

 ● Double-wall tube with the strength and structural integrity to withstand the extreme pressures


Application

For all vehicles with hydraulic brake system including drum brake and disc brake conversion.

Car, Electric car, Pick up, SUV, Van, Light truck, Middle bus, Boat Trailer, Multi-purpose passenger vehicle (MPV), Light commercial vehicle (LCV), Golf cart, Recreational vehicle, Burden carrier, Tow tractor, Electric tram and cart, Off-road, Racing car, Hot rod, Motorsport, Tuning car, Modified car, Motorcycle, Scooter, ATV, UTV, Three wheeler, Antique car, Vintage car, Classic car etc.
