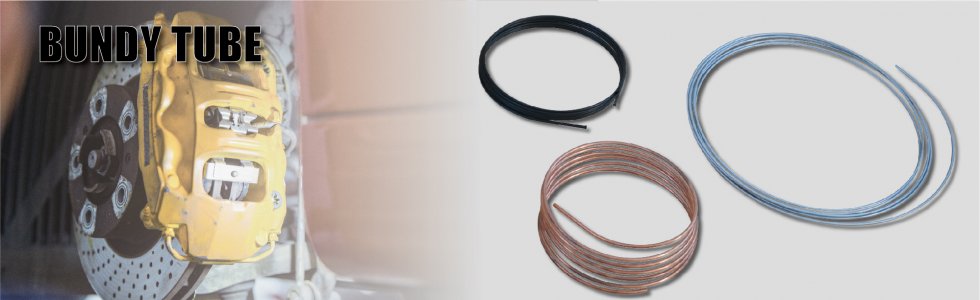

Bundy Tube

Bundy Tube

KST bundy tube coils are the copper-brazed, double-walled, steel alloy tubing, used in pre-made lines. It can provide a long-lasting repair or replacement for all vehicles and all types of fluid transfer systems including brake system.

Standard

 ● SAE J527

 ● ASTM A254

 ● TSE 5130

 ● DIN 74234

Sizes

Available in Coils of 20' 25′, 50′, and 100′
Packed with tube nuts, coils are good choice for customers on specific lengths or non-standard applications.


TYPE

Imperial A

O.D A

Wall thickness B

O.D A

Wall thickness B

Double wall

1/8

0.125''

0.028''

3.17mm

0.71mm

3/16

0.187''

0.028''

4.76mm

0.71mm

1/4

0.250''

0.028''

6.35mm

0.71mm

5/16

0.312''

0.028''

7.79mm

0.71mm

3/8

0.375''

0.028''

9.52mm

0.71mm

1/2

0.500''

0.028''

12.7mm

0.71mm
