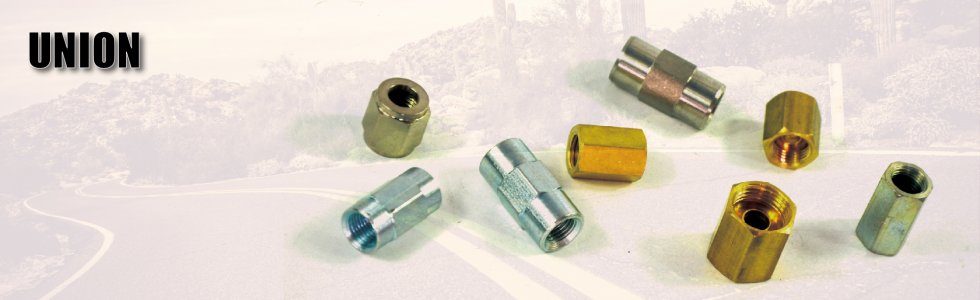

Union

Union

KST unions are used to join two brake, fuel, or transmission lines together from the dual master cylinder to the rear axle. Ensure to match the thread and flare type to the lines being connected.

Standard

•    Metric

•    SAE


Excellent Features

•    Hard-wearing brass or steel construction for a long service life

•    Corrosion-resistant for long-lasting durability

•    Available in bubble flare and inverted flare styles

•    A large selection available to fit diverse thread sizes

Sizes

Metric Thread M10x1, M10x1.25, M10X1.5, M12x1, M12x1.5, M14x1, M14x1.5, M16x1.5, M18x1.5, M20x1.5, M8x1.25 etc.

Imperial Thread 3/8-24, 3/8-20, 7/16-24, 7/16-20, 5/18, 1/2-20, etc.

KST NO.MATERIALPLATINGTHREADSEATLENGTHPICTURE

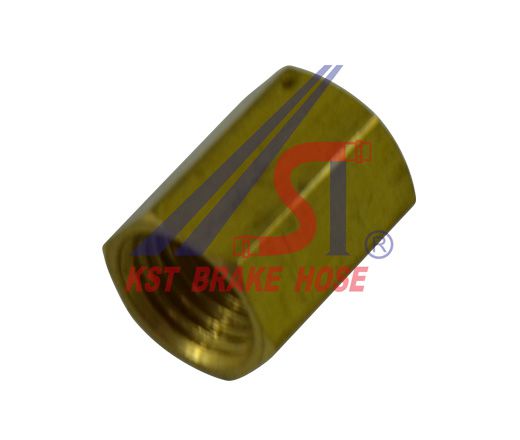

KFAU001-2BRASSN/A3/8×24H1116
KFAU001-4BRASSN/A1/2×24H1618
KFAU00112L14WHITE3/8×24H1216

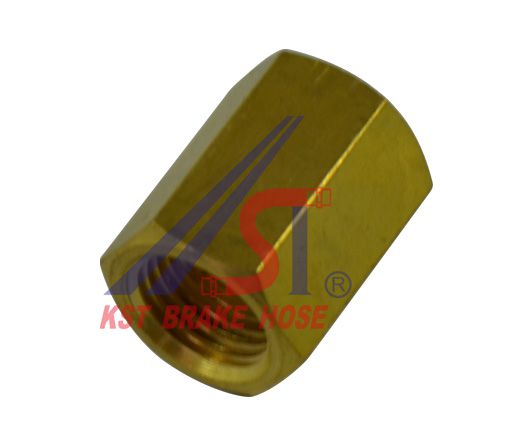

KFAU001BRASSN/A3/8×24H1216
KFAU002-212L14WHITEM10×1H1322
KFAU00212L14WHITE3/8×24H1318
KFAU002BRASSN/A3/8×24H1318
KFAU00312L14WHITE3/8×24H1332

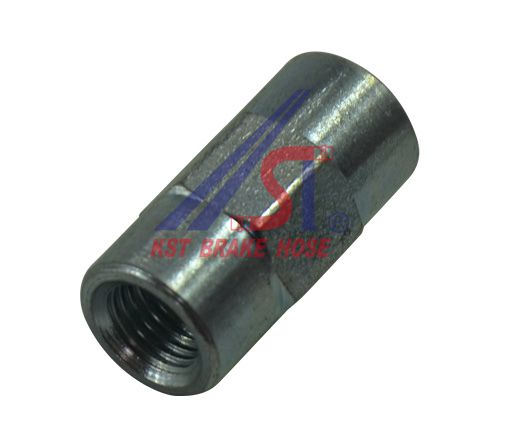

KFAU00412L14WHITE3/8×24H1326

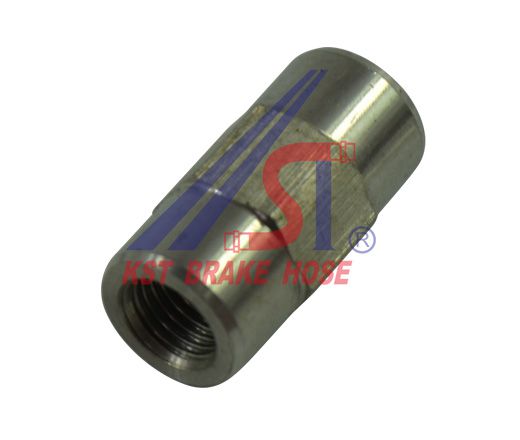

KFAU004

304

 STAINLESS STEEL

N/A3/8×24H1326

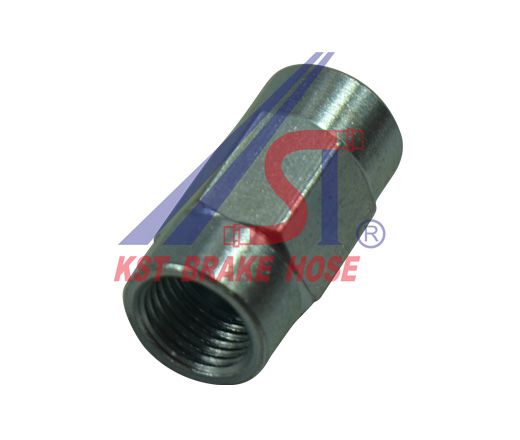

KFAU00512L14WHITEM10×1H1326
KFAU00712L14WHITEM10×1H1326
KFAU008-3BRASSN/A5/8×18H1820
KFAU008BRASSN/A7/16×24H1416

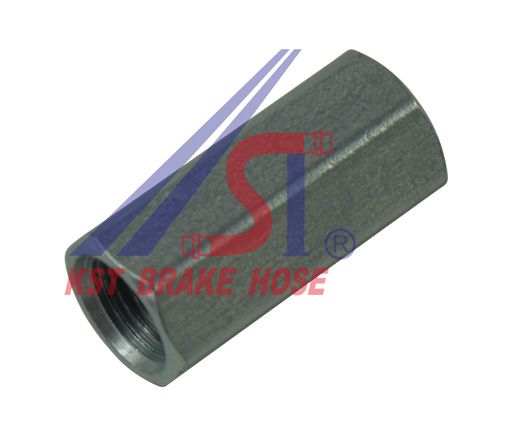

KFAU01112L14WHITEM10×1H1328

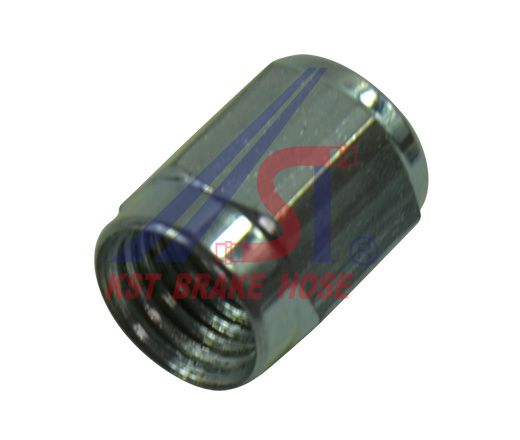

KFAU01212L14WHITE3/8×24H1115

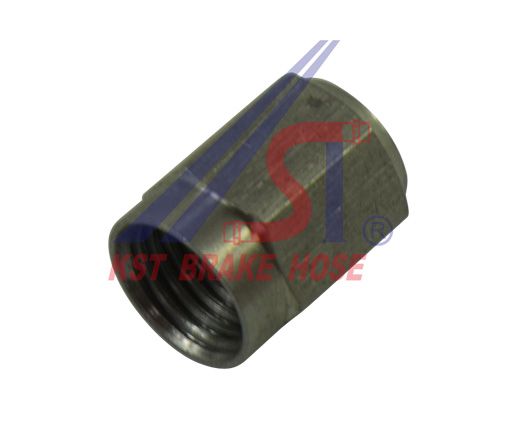

KFAU012304 STAINLESS STEELN/A3/8×24H1115

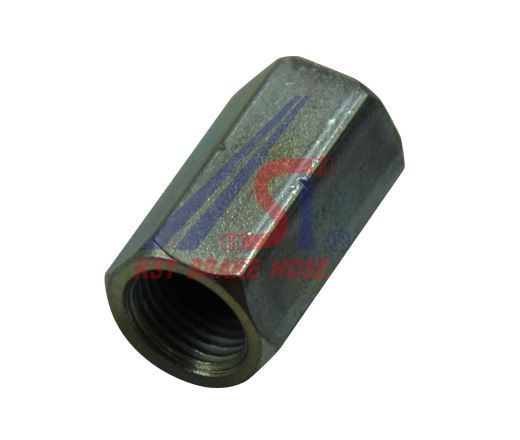

KFAU01412L14WHITEM10×1H1323.2

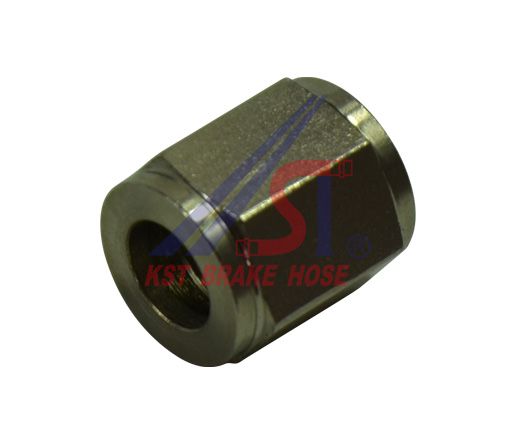

KFAU01512L14NICKLE7/16×20H1416
KFAU01612L14WHITE3/8×24H12.828.6

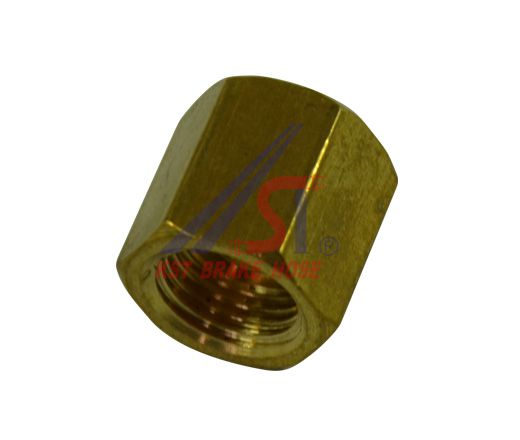

KFAU019BRASSN/A1/2×20H1616


Material

•    Steel: 12L14, 230Mo7pb, Q215,

•    Brass:  62#, CuZn40, C27400,

•    Stainless steel: 304


Plating

•    Zn-Ni alloy

•    Chrome 3+, White, Yellow, Black, Green


Application

For all vehicles with hydraulic brake system including drum brake and disc brake conversion.

Car, Electric car, Pick up, SUV, Van, Light truck, Middle bus, Boat Trailer, Multi-purpose passenger vehicle (MPV), Light commercial vehicle (LCV), Golf cart, Recreational vehicle, Burden carrier, Tow tractor, Electric tram and cart, Off-road, Racing car, Hot rod, Motorsport, Tuning car, Modified car, Motorcycle, Scooter, ATV, UTV, Three wheeler, Antique car, Vintage car, Classic car etc
